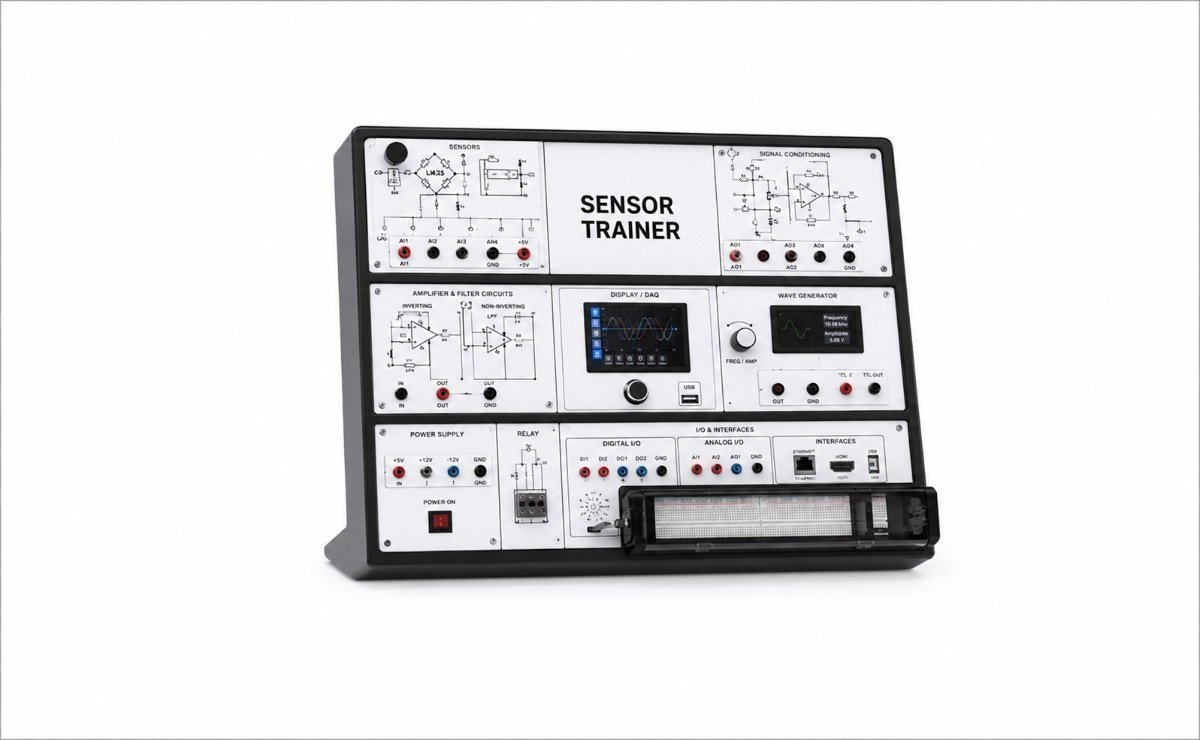

AVQE 201 Sensor Lab
SensorLab – AVQE 201 is an advanced sensor training platform designed for hands-on learning, experimentation, and practical study of industrial sensors, signal conditioning, data acquisition, and electronic circuits.
Description
The SensorLab – AVQE 201 is a comprehensive sensor training and experimentation platform developed for practical learning in sensor technology, instrumentation, electronics, signal conditioning, and data acquisition. The system combines a wide range of sensors and electronic functional modules with an integrated graphical interface, allowing users to design circuits, acquire sensor data, observe real-time waveforms, and perform practical experiments on a single training platform.
The platform incorporates an IoT-enabled Linux-based 7-inch graphical capacitive touchscreen, an inbuilt Cortex ARM processor, and an integrated Data Acquisition System (DAQ) for acquiring and analyzing analog data. Users can view output waveforms, access operating manuals and tutorials, capture and store graphs, and log sensor data through the software. The system also supports USB, Ethernet, and HDMI connectivity, along with USB storage and keyboard/pen-drive interfaces.
Key Features
- Temperature Sensors: LM35, Platinum RTD, K-Type Thermocouple, J-Type Thermocouple, AD590 and NTC Thermistor
- Optical Sensors: Phototransistor, photovoltaic cell and photodiode
- IR Sensors: TSOP1738 and IR LED
- Pressure Sensors: Pressure transducer and foot pump
- LVDT Coil for displacement measurement
- Load Cell for load measurement
- Strain Gauge with full-bridge configuration
- Gas and Alcohol Sensors
- Optocoupler and Magnetic Reed Sensors
- Capacitive Level Sensor
- Accelerometer Sensor
- Temperature & Humidity Sensor
